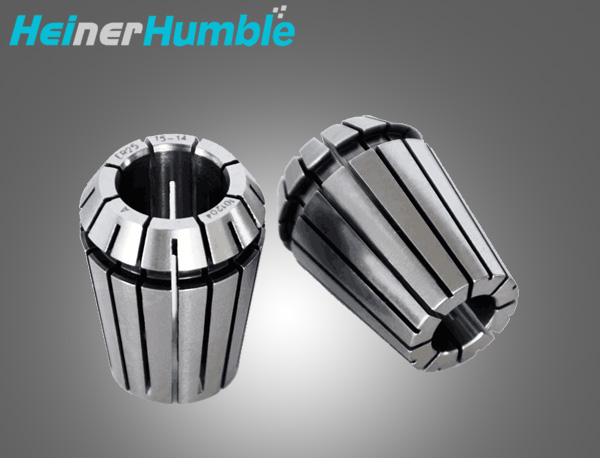

ER-UP COLLET（ULTRA PRECISION）

ER-UP COLLET（ULTRA PRECISION）

Categories：	Textile machine / Machine fittings
Usage：	metal

Contact Infomation

Xinchang Junnuo Tools Technology Co., Ltd.

Tel:	86-575-86168815
Fax :	86-575-86169555
Country/Region :	United States
Address :	No.285 Lijiang Road Xinchang City Zhejiang Pronvince, China
Contact :	heiner tools (Mr.)

Contact Now

Detailed Product Description

FOB Price：
Origin：
Minimum Order：
Monthly Production：
Delivery Time：Net 5-10 Days
Preferred Payment Type：

Description

Feature

-Average T.I.R. 0.005mm(0.0002" ）
-Clamping range from 3.0mm（0.1181"）up to 26mm（1.0236"）
-Material:made of SUJ2

-Vacuum carburizing heat

Metric Size

Code No.		D	L	d
UP-ER11		11.5	18	3,3.5,4,4.5,5,5.5,6,6.5,7
UP-ER16		17	27	3,4,5,6,7,8,9,10
UP-ER20		21	31	3,4,5,6,7,8,9,10,11,12,13
UP-ER25		26	35	3,4,5,6,7,8,9,10,11,12,13,14,15,16
UP-ER32		33	40	3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20
UP-ER40		41	46	4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26

Inch Size

Code No.		D	L	d
UP-ER11		11.5	18	1/8,3/16,7/32,1/4
UP-ER16		17	27	1/8,3/16,7/32,1/4,5/16,11/32,3/8
UP-ER20		21	31	1/8,3/16,7/32,1/4,5/16,11/32,3/8,13/32,7/16,1/2
UP-ER25		26	35	1/8,3/16,7/32,1/4,5/16,11/32,3/8,13/32,7/16,1/2,17/32,9/16,5/8
UP-ER32		33	40	1/8,3/16,7/32,1/4,5/16,11/32,3/8,13/32,7/16,1/2,17/32,9/16,5/8, 21/32,11/16,3/4,25/32
UP-ER40		41	46	1/8,3/16,7/32,1/4,5/16,11/32,3/8,13/32,7/16,1/2,17/32,9/16, 5/8, 21/32,11/16,3/4,25/32,13/16,27/32,7/8,15/16,31/32,1

ER11		ER16		ER20		ER25		ER32		ER40
SET NO.	RANGEmm	SET NO.	RANGEmm	SET NO.	RANGEmm	SET NO.	RANGEmm	SET NO.	RANGEmm	SET NO.	RANGEmm
UP-ER11-3	3.0-2.5	UP-ER16-3	3.0-2.0	UP-ER20-3	3.0-2.0	UP-ER25-3	3.0-2.0	UP-ER32-3	3.0-2.0	UP-ER40-3	3.0-2.0
UP-ER11-3.5	3.5-3.0	UP-ER16-4	4.0-3.0	UP-ER20-4	4.0-3.0	UP-ER25-4	4.0-3.0	UP-ER32-4	4.0-3.0	UP-ER40-4	4.0-3.0
UP-ER11-4	4.0-3.5	UP-ER16-5	5.0-4.0	UP-ER20-5	5.0-4.0	UP-ER25-5	5.0-4.0	UP-ER32-5	5.0-4.0	UP-ER40-5	5.0-4.0
UP-ER11-4.5	4.5-4.0	UP-ER16-6	6.0-5.0	UP-ER20-6	6.0-5.0	UP-ER25-6	6.0-5.0	UP-ER32-6	6.0-5.0	UP-ER40-6	6.0-5.0
UP-ER11-5	5.0-4.5	UP-ER16-7	7.0-6.0	UP-ER20-7	7.0-6.0	UP-ER25-7	7.0-6.0	UP-ER32-7	7.0-6.0	UP-ER40-7	7.0-6.0
UP-ER11-5.5	5.5-5.0	UP-ER16-8	8.0-7.0	UP-ER20-8	8.0-7.0	UP-ER25-8	8.0-7.0	UP-ER32-8	8.0-7.0	UP-ER40-8	8.0-7.0
UP-ER11-6	6.0-5.5	UP-ER16-9	9.0-8.0	UP-ER20-9	9.0-8.0	UP-ER25-9	9.0-8.0	UP-ER32-9	9.0-8.0	UP-ER40-9	9.0-8.0
UP-ER11-6.5	6.5-6.0	UP-ER16-10	10.0-9.0	UP-ER20-10	10-9.0	UP-ER25-10	10-9.0	UP-ER32-10	10-9.0	UP-ER40-10	10-9.0
UP-ER11-7	7.0-6.5			UP-ER20-11	11-10	UP-ER25-11	11-10	UP-ER32-11	11-10	UP-ER40-11	11-10
				UP-ER20-12	12-11	UP-ER25-12	12-11	UP-ER32-12	12-11	UP-ER40-12	12-11
				UP-ER20-13	13-12	UP-ER25-13	13-12	UP-ER32-13	13-12	UP-ER40-13	13-12
						UP-ER25-14	14-13	UP-ER32-14	14-13	UP-ER40-14	14-13
						UP-ER25-15	15-14	UP-ER32-15	15-14	UP-ER40-15	15-14
						UP-ER25-16	16-15	UP-ER32-16	16-15	UP-ER40-16	16-15
								UP-ER32-17	17-16	UP-ER40-17	17-16
								UP-ER32-18	18-17	UP-ER40-18	18-17
								UP-ER32-19	19-18	UP-ER40-19	19-18
								UP-ER32-20	20-19	UP-ER40-20	20-19
										UP-ER40-21	21-20
										UP-ER40-22	22-21
										UP-ER40-23	23-22
										UP-ER40-24	24-23
										UP-ER40-25	25-24
										UP-ER40-26	26-25
