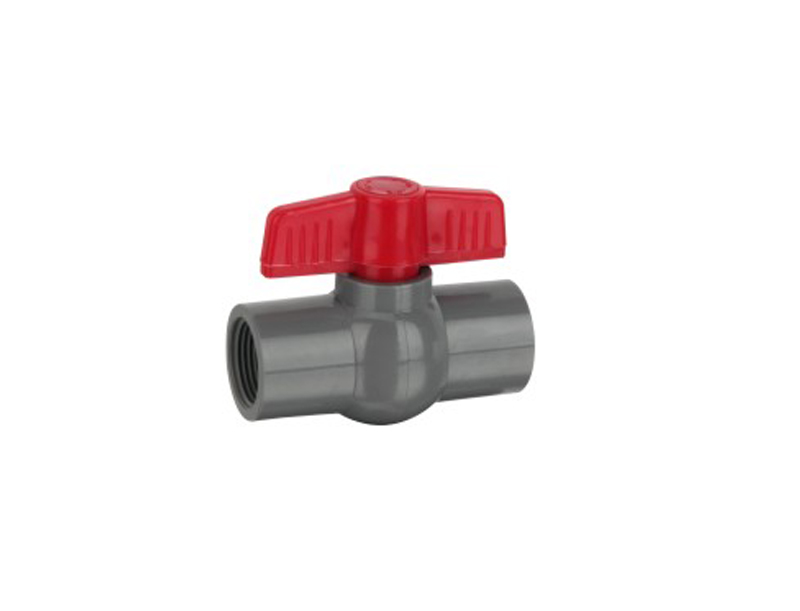

SIZE: 1/2"-8"
END CONNECTOR: THREAD, SOCKET, FLANGE WORKING PRESSURE:1.OMPA
Speclfication of material | |||
NO. |
PART |
MATERIAL |
QTY |
1 |
Body |
PVC、CPVC、 PP |
1 |
2 |
Seat Seal |
TPV |
1 |
3 |
O-Ring |
EPDM、FPM(NBR) |
2 |
4 |
Ball |
PVC、CPVC、PP |
2 |
5 |
Handle |
PP、ABSx PVC |
2 |
6 |
Cap |
PP、ABSx PVC |
2 |
Dimensions |
|||||||||||||
size nom |
DIN/GB |
BS |
ANSI |
JIS |
BSPT |
NPT |
d |
D |
L |
I |
W |
H1 |
H2 |
DN15mm(1/2") |
20 |
22 |
21.34 |
22 |
14 |
14 |
14.5 |
29 |
74.5 |
20 |
69 |
64 |
44.9 |
DN20mm(3/4") |
25 |
26 |
26.67 |
26 |
14 |
14 |
20 |
35 |
85 |
22 |
74 |
73 |
52 |
DN25mm(1") |
32 |
34 |
33.4 |
32 |
11 |
11.5 |
24 |
43 |
99 |
25 |
88 |
86.5 |
65 |
DN32mm(1-1/4") |
40 |
42 |
42.16 |
38 |
11 |
11.5 |
30 |
52 |
108 |
25.5 |
101 |
97 |
70 |
DN40mm(1-1/2") |
50 |
48 |
48.26 |
48 |
11 |
11.5 |
34 |
60 |
124 |
29 |
110 |
108 |
73.5 |
DN50mm(2") |
63 |
60 |
60.33 |
60 |
11 |
11.5 |
44 |
75 |
141 |
35 |
126.5 |
127 |
81 |
DN65(2-1/2") |
75 |
76 |
73.03 |
76 |
11 |
8 |
56 |
90 |
183 |
53 |
201.5 |
190 |
108.5 |
DN80mm(3") |
90 |
89 |
88.9 |
89 |
11 |
8 |
71 |
107 |
227 |
66.5 |
201.5 |
182 |
116 |
DN100mm(4") |
110 |
114 |
114.3 |
114 |
11 |
8 |
86 |
129 |
272 |
72 |
243 |
219 |
151.5 |
DN150mm(6") |
160 |
165 |
168.3 |
165 |
11 |
8 |
130 |
187 |
390 |
100 |
300 |
310 |
180 |
DN200mm(8") |
200 |
216 |
219.1 |
216 |
11 |
8 |
154 |
227 |
420 |
105 |
300 |
380 |
190 |
