Equipment for hydrogen production by sixty cubic meter water electrolysis
Sales manager: Jessica
Email: sales1@zxdh2.com
Skype: jessica01235483 | Phone: 86-18030235311 | Wechat: hu18030235311
Specification parameters
▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔
|
P/N
|
ZXD-60
|
|
Hydrogen Production（m3/h）
|
60
|
|
Oxygen Production（m3/h）
|
30
|
|
Hydrogen Purity（V/V）
|
≥99.8%
|
|
Oxygen Purity （V/V）
|
≥92.5%
|
|
Operating load
|
50%~100%
|
|
Working Pressure（MPa）
|
1.5~2.0
|
|
Hydrogen Moisture Content （g/m3）
|
≤4
|
|
Hydrogen Alkalinity（mg/m3）
|
≤1
|
|
Working Temperature（℃）
|
85±5
|
|
Cooling water flow（m3/h）
|
9
|
|
DC power consumption
(kW·h/m3H2)
|
≤4.6
|
|
External dimension of electrolyzer
L×W×H （mm）
|
2170×1450×1580
|
|
Electrolyzer Weight （kg）
|
7600
|
|
Alkali concentration
|
30% KOH
|
|
Circulation quantity of alkali liquor
（m3/h）
|
3.35~4.0
|
|
KOH consumption (normal operation（kg/unit）
|
520
|
Equipment introduction
▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔
The
purification equipments designed and produced by our company mainly
includes the purification of electrolytic hydrogen and oxygen, and the
gas purification of hydrogen-rich chemical by-products.
What's
more, by electrolysis hydrogen and oxygen purification equipment, the
content of impurities in the product gas after primary purification can
be less than 1ppm;
After the two-stage purification, the content of various impurities can be less than 0.1 PPM.
At
the same time, we can also use ultra-low temperature adsorption or
metal getter technology to reduce the content of impurities to 1ppb to
meet various needs of users.
The gas processing capacity is 2 - 2000N m3/h, and the working pressure is 0.1MPa - 5.0MPa.

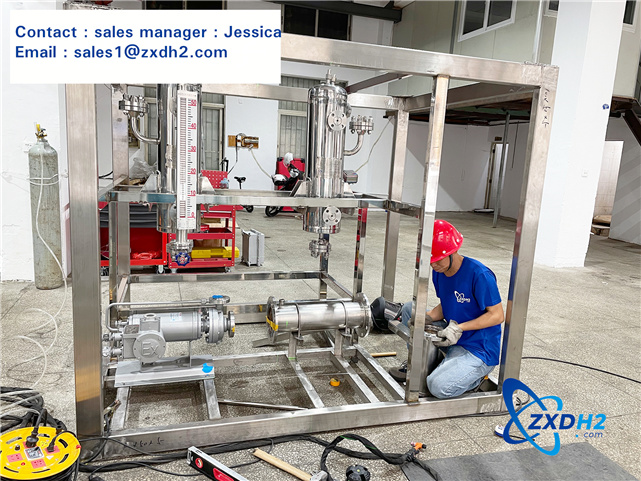

Project presentation
▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔
Comprehensive Service Provider of Water Electrolysis Hydrogen Production Equipment
The
hydrogen production capacity of a single electrolyzer of the water
electrolysis hydrogen production equipment by Zhongxinda is from 2m3/h
to 1500m3/h.
Hydrogen Production: 10Nm3/h
Oxygen Production: 5Nm3/h
Hydrogen Purity: 99.9％
Oxygen Purity: 99.9％
Electrolyzer Working Pressure: 3.2MPa
Unit Power Consumption: ≤4.8kW.h/N.m3
Why choose Xiamen Zhongxinda Hydrogen Energy Technology Co., Ltd?
▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔ ▔
We
have a professional after-sales service team for hydrogen generation
system with rich experience in hydrogen machine maintenance.According to
the running state and environment of hydrogen production machine , we
will help you optimize and upgrade the system, design plans suitable for
the operation of the machine, improve the monitoring and detection for
DCS and PLC, enhance the running safety and using cycle of hydrogen
production equipment, so that reduce system failure caused by peripheral
equipment (hydrogen compressor, dryer, PLC controller, etc.) and
equipment failure or accident caused by personnel operation mistakes.
